Energy issue correction is a know-how designed to revive an influence issue as shut as potential to unity. Energy issue correction is generally achieved by the addition of capacitors to the electrical community. This can scale back losses within the energy grid, and finally decrease your electrical invoice.

Energy issue correction

What’s Energy Issue?

Energy Issue is the ratio between the helpful energy (kW) and whole (obvious) energy of merchandise or an set up. It’s a measure of the effectivity energy conversion into output.

The facility issue may be expressed in two methods:

Energy issue (pf) = Helpful energy (kW) divided by the entire energy (kVA),

or

Energy issue (pf) = The cosine of the angle between helpful energy and whole energy = cos ø.

Worth of Energy Issue and Losses

The best energy issue is unity, or one. If the facility issue is lower than unity, further vitality can be required with a purpose to full the precise process at hand.

Nearly all energy move within the energy distribution and provide techniques causes losses.

  • A load with an influence issue of 1 is essentially the most environment friendly load for the provision system.
  • When the load has an influence issue of zero.eight, the loss within the provide system turns into excessive, and the invoice for the patron will get larger.

Thus, a comparatively small enchancment in energy issue can considerably scale back losses since losses are proportional to the sq. of the present.

Reactive Energy

If the facility issue drops to lower than one, there can be ‘lacking’ energy known as reactive energy, which sadly is required to supply a magnetising subject for motors and different inductive hundreds to perform correctly.

Reactive energy is also referred to as wattless, magnetizing or wasted energy, and it provides to the burden positioned on the facility grid and the patron’s invoice.

Motive of Poor Energy Issue

A poor energy issue is often as a result of following two causes.

  1. A major part distinction between the voltage and present on the load terminals
  2. the present waveform is distorted or has excessive harmonic content material.

Poor energy issue often happens with inductive hundreds corresponding to an induction motor or an influence transformer, a ballast in a luminaire, a welding set, or a furnace. The distorted present waveform may be produced by a rectifier, an inverter, a variable pace drive, a switched-mode energy provide, discharge lighting, or different digital hundreds.

Bettering Poor Energy Issue

Poor energy issue as a result of inductive hundreds may be improved by including energy issue correction tools, however a poor energy issue ensuing from distorted present waveforms clearly wants transforming of the tools or the addition of harmonic filters.

Inverters that declare to have an influence issue of zero.95 or extra are literally working at an influence issue between zero.5 and zero.75. It ought to be famous that the zero.95 determine relies on the cosine of the angle between voltage and present, which doesn’t consider that currents which have irregular waveforms contribute to elevated losses.

Energy Issue Correction

An inductive load requires a magnetic subject to function. The magnetic subject causes the present to be out of part with the voltage (the present lags the voltage).

Energy issue correction is the method of compensating for the lagging present by creating a number one present by connecting capacitors to the provision. A sufficiently excessive capacitance is linked in order that the facility issue is ready to as shut as potential to unity.

Energy Issue Correction

Energy issue correction is the time period given to a know-how that has been used for the reason that flip of the 20th century. It’s used to revive the facility issue of system to as near unity.

Energy issue correction is generally achieved by the addition of capacitors to the electrical community which compensates for the reactive energy demand of the inductive load and thus reduces the burden on the provision. There ought to be no impact on the operation of the tools.

The facility issue correction, often within the type of a capacitor, is added to the distribution system to counteract the magnetic fields as a lot as potential with a purpose to scale back losses within the distribution system and to additional scale back the electrical energy invoice.

Capacitors are utilized in virtually all energy issue correction tools to attract present, which leads the voltage, thereby producing a number one energy issue. If capacitors are linked to a circuit that operates at a nominally lagging energy issue, the extent that the circuit lags is diminished proportionately.

Usually the corrected energy issue can be zero.92 to zero.95. Some utilities provide incentives for his or her prospects to take care of an influence issue of over zero.9, for instance, whereas others penalize these with a low energy issue.

Quite a lot of methods exist to meter this, however in the long run, with a purpose to scale back wasted vitality within the distribution system, the patron is required to use energy issue correction. At the moment, most Community Working firms penalize for energy elements beneath zero.95 or zero.9.

Advantages of Energy Issue Correction

When the facility issue correction is utilized appropriately, the next advantages may be achieved:

  • Environmental profit: Enhanced vitality effectivity ends in decrease energy consumption so fewer greenhouse gasoline emissions are produced and fossil fuels will not be depleted by energy stations.
  • Discount of electrical energy payments.
  • Additional kVA is on the market from the present provide.
  • Discount of I2R losses in transformers and distribution tools.
  • Discount of voltage drop in lengthy cables.
  • Prolonged tools life – Decreased electrical burden on cables and electrical parts

How is Energy Issue Correction is Achieved?

Energy issue correction is achieved by including capacitors in parallel to motor or lighting circuits. This may be accomplished on the tools or distribution board or on the origin of the set up.

Static Energy Issue Correction

By connecting the correction capacitors to the motor starter, you possibly can apply static energy issue correction to every particular person motor. A drawback can happen when the load on the motor adjustments and may end up in below or overcorrection.

Static energy issue correction should not be utilized on the output of a variable pace drive, solid-state delicate starter or inverter because the capacitors may cause critical harm to the digital parts.

Energy issue corrections which might be appropriately sized shouldn’t trigger overcorrection. A motor’s energy issue correction is usually primarily based on its non-load (magnetizing) energy. Because the reactive load of a motor is bigger than the kW load, overcompensation ought to be prevented.

Care ought to be taken when making use of energy issue correction star/delta kind management in order that the capacitors will not be subjected to fast on-off-on circumstances. Usually the correction could be positioned on both the Most important or Delta contactor circuits.

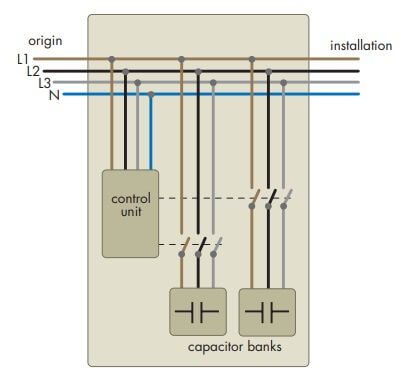

Energy issue correction utilized on the origin of the set up consists of a controller monitoring the VAr’s and this controller switches capacitors in or out to take care of the facility issue higher than a preset restrict (sometimes zero.95)

The place ‘bulk’ energy issue correction is put in, different hundreds can in concept be linked wherever on the community.
